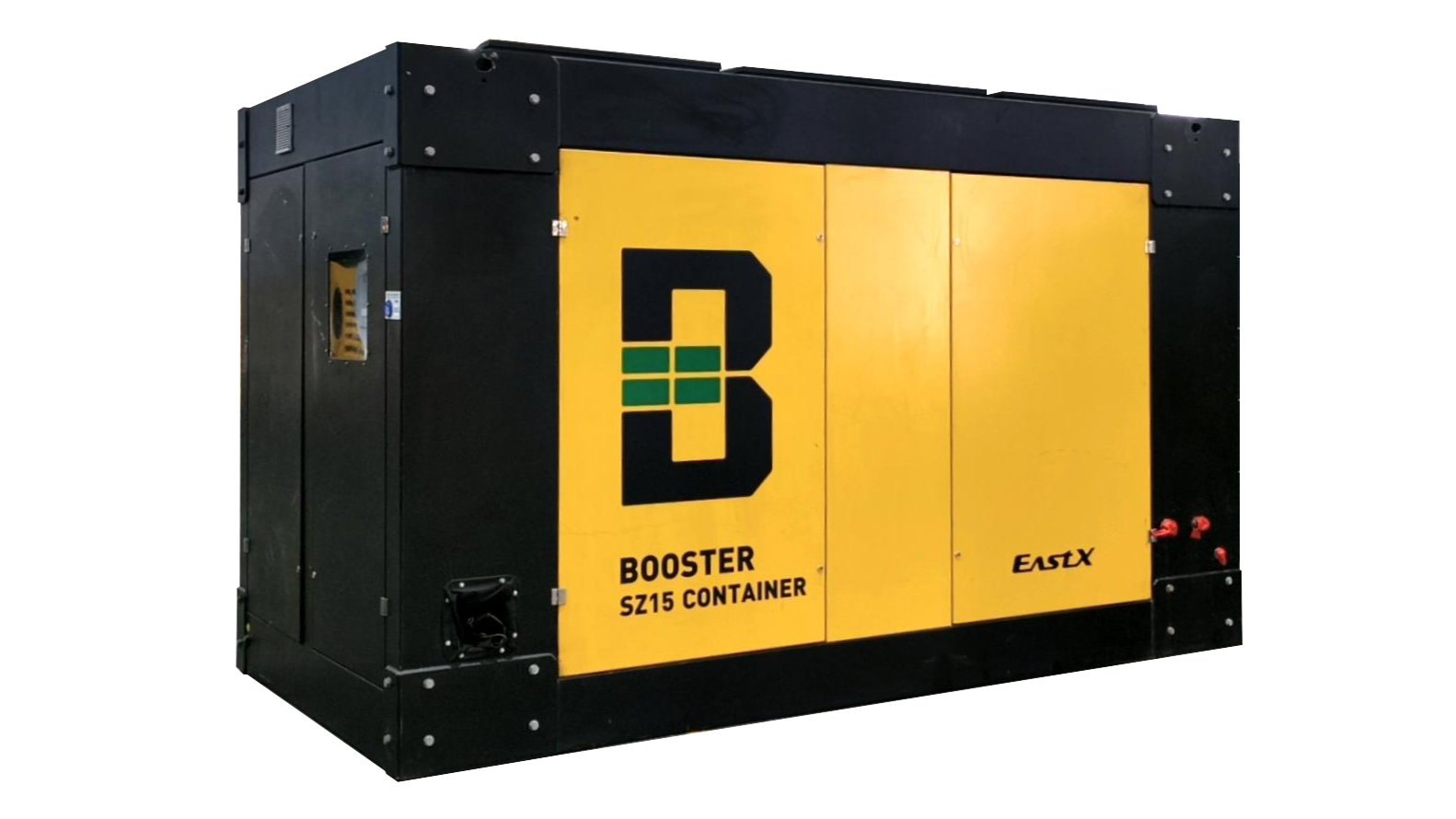

B series hige pressure booster

Air/nitrogen pressurized, high pressure, oil-inject

B series booster is a  injection type, high pressure air/nitrogen boosster, with a maximum pressure of 350bar. The oil in the compressed gas can be removed through the configuration of high pressure oil filter system, and the oil content is less than 0.1mg/m3, The supporting dryer (high pressure cold dryer or adsorption dryer) can make the dew point of compressed air reach - 40/- 70 ℃. This type of dryer is widely used in the pressure test or air tight test in petrochemical industry and industrial manufacturing fields.

KEY DATA

  1. Model
    BAUER680/B18
  1. MAX WORKING PRESSURE
    100~350 bar(e)
  1. MAX CAPACITY
    0.68/15 m³/min
  1. COMPRESSION LEVEL
    multistage
  1. POWER RATING
    15/250 kw
  1. POWER INPUT
    380V/3P/50Hz
  1. SOUND PRESSURE LEVEL
    ---
  1. AIR EVACUATION VALVE SIZE
    ---
  1. WEIGHT
    500/18000 kg
  1. DIMENSIONS
    1480×830×1520/ 8000×2400×2700 mm

FEATURES

  • High pressure type
  • Equipped with oil and water removal device
  • Container or skid design
  • Compressed air, nitrogen or helium

BENEFITS

  • Easy to use
  • Outdoor use
  • Safe and reliable
